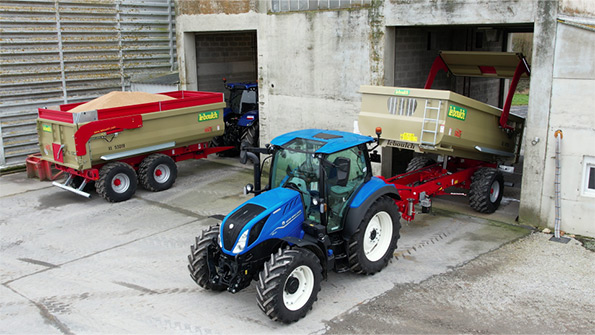

Gold2 tipping trailers

Leboulch GOLD2 monocoque agricultural tipping trailers are available in several models ranging from 16 to 32 tonnes GVW and 1.2 m or 1.5 m inside height. They are made from S420MC high tensile steel, which has enabled us to create a light body with fewer reinforcements that remains sturdy thanks to the full-length folds.

These beige and red tapered bodies are wider at the bottom to lower the centre of gravity and facilitate emptying. Additional features include a door seal, a parabolic leaf suspension, a grain chute with adjustable opening and a large sight window.

Brochures

Single or double axle
11 to 18 tonnes
Body height: 1.2 m
Sturdy and reliable

47S16 XL

53S16 XL

53D19 XL

58D22 XL

62D24 XL

Brochures

Double or triple axle
13 to 22 tonnes
Body height: 1.5 m
High resistance to intensive use

53D19 XXL

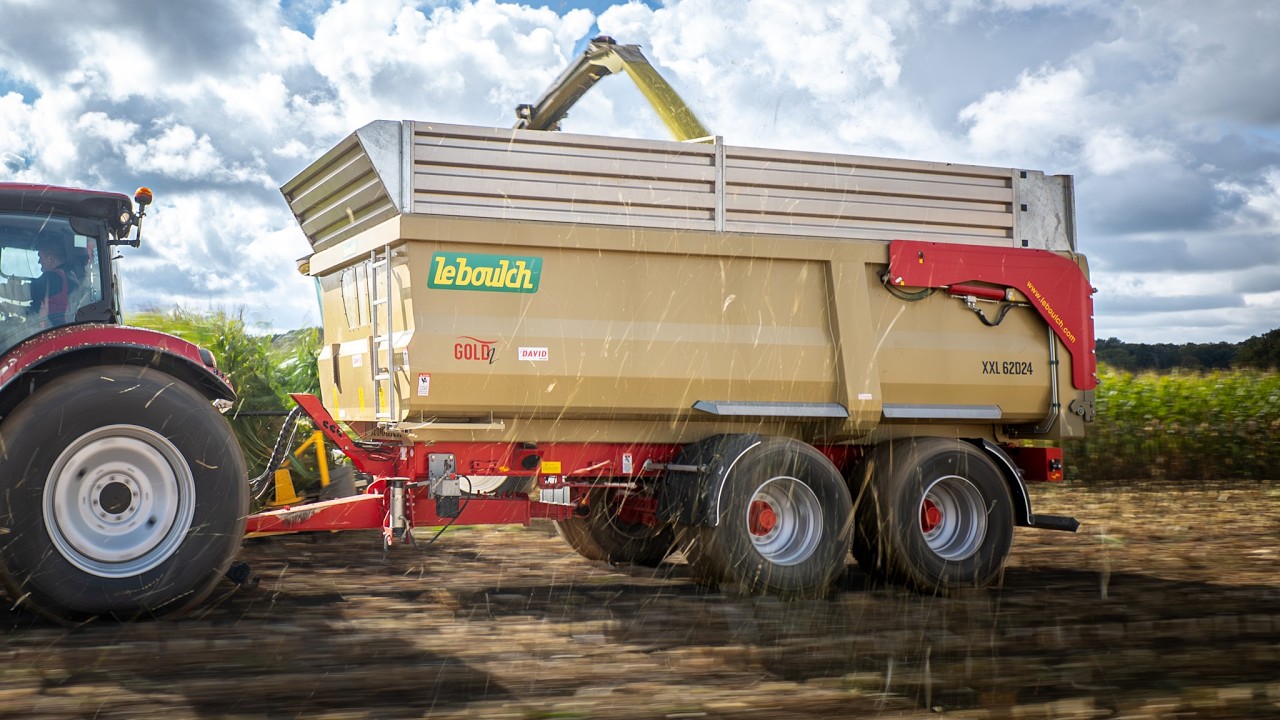

58D22 XXL

62D24 XXL

67D24 XXL

67D26 XXL

73D26 XXL

73D29 XXL

79T32 XXL

85T32 XXL

Models

XL models

*Total height: 2.54 m (47S16 to 53D19) or 2.66 m (58D22 and 62D24) with 1,230 mm-diameter wheels

XXL models

*Total height: 2.84 m (53D19) or 2.96 m (58D22 to 85T32) with 1,230 mm-diameter wheels

Light tapered body

Thanks to the use of high tensile steel and a body design based on successive folds, Leboulch has significantly reduced the weight of its tipping trailers. The body has a cone shape (2.25 m inside width at the front, 2.3 m at the rear) and tapers at the base to facilitate unloading. These two features ensure a greater stability to the machine when tipping.

Design

(A) Body in ST420 high tensile steel sheet (thickness: 4 mm).

(B) Shot blasting.

(D) Finish with 2K paint and a hammered effect.

Sturdy 300 x 100 x 10 mm tubular chassis stringer for the entire range, except for 47S16, 53S16 and 53D19 (300 x 100 x 8 mm).

Running gear

The bogie suspension with parabolic leaves (on models from 53D19 to 67D24) offers a large wheel travel for improved crossing capacity thanks to its mounting kinematics and load distribution.

Tandem/tridem suspensions with connecting rods (on models from 67D26 to 85T32) are the best compromise for both road and agricultural use.

Drawbar & Parking stands

Hydraulic folding parking stand attached directly to the trailer chassis to free the drawbar and facilitate turning.

Choice of eyelets

(A) Bolted knee-joint (option)

(B) Bolted Ø 50 mm (standard)

Document tube

Document tube with individualised parts book and user manual.

Wide choice of extensions

To best suit your needs, Leboulch offers extensions of 300 (steel or aluminum), 500 (aluminum) or 700 mm (aluminum), stackable up to 1 m. To limit weight and facilitate assembly by a single person, 2-part side extensions on single- and double-axle models, and 3-part extensions on triple-axle models, are available.

Ladder and mudguards

Ladder, galvanised side mudguards and pre-equipment for optional equipment(side bumper and thermoplastic mudguards).

Thermoplastic mudguards

Recommended for on-road use, the thermoplastic mudguard option limits splashing onto the tractor or tipping trailer.

Rolling cover

Bâchage roulant disponible.

2 grain hatches/removable chutes

This equipment allows you to select the unloading side: left or right. If the tipping trailer is on a slope, this limits the weight on the low side. It also allows an easier emptying of the whole body: there is less matter left on the side walls.

Safety and eas

High-clearance rear door with hydraulic opening for easy unloading of silage with an extension and to avoid scraping the pile when tipping at the highest.

Door opening cylinder protected by the door arm and upper body edge strip. Double door closing safety system: hydraulic with check valve and mechanical with 2 adjustable hooks.

Flexible seal in a rail along the entire height of the door (watertight without grain chute).
